BPHE HEAT EXCHANGER ,TYPE UFP62FB UNEQUAL FLOW PATH BRAZED PLATE HEAT EXCHANGER
Product Introduce :
Unequal Flow Path is the one kind of innovative , patent which incoming from Brazed Heat Exchanger , this kind of unequal flow path signify it is different on cold and heat for path volume . It is beneficial to take advantage of reasonable pressure drop on two flanks , If there is different flow or different fluid properties , for example oil and water , or different reasonable pressure drop needed on two flanks . Then , optimized heat transfer , so as to make the quantity of heat exchanger plate in unit reduce to the minimum , in some cases , the quantity of heat exchanger under the same load max reduce 25% . The path volume of primary side is 25% larger than secondary side .
| TYPE | B(mm) | C(mm) | D(mm) | E(mm) | THICKNESS(mm) | WEIGHT(Kg) | MAX FLOW (m3/h) | DESIGN PRESSURE(Mpa) |
| UFP 10 | 77 | 42 | 155 | 119 | 9+1.25N | 0.28+0.027N | 4 | 3/4.5 |
| UFP 20A | 93 | 40 | 323 | 269 | 9+1.5N | 1+0.09N | 8 | 3/4.5 |
| UFP 42A | 121 | 68 | 332 | 279 | 10+1.53N | 2.05+0.11N | 18 | 3/4.5 |
| UFP 62FA | 120 | 63 | 527 | 470 | 10+1.98N | 2.379+0.18N | 18 | 3/4.5 |
| UFP 62FB | 120 | 63 | 527 | 470 | 10+1.98N | 2.379+0.18N | 18 | 3/4.5 |
| UFP 95FA | 182 | 92 | 609 | 519 | 12+2.05N | 15+0.36N | 42 | 3/4.5 |
| UFP 95FB | 182 | 92 | 609 | 519 | 12+2.05N | 15+0.36N | 42 | 3/4.5 |

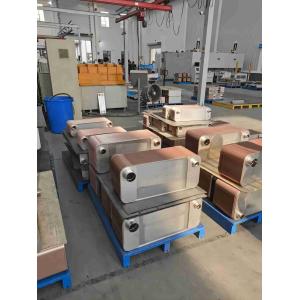

Workshop :
